100 Mbit/s Dual-port PoE Switch Perfect for Wireless Small-scale Monitoring Networking in Outdoor and Indoor Scenarios

Product Categories

Shanghai Apying Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

max. lan data rate : 1000Mbps

with modem function : NO

standards and protocols : WiFi 802.11 ax

wi-fi supported frequency : 2.4G & 5G

supports wds : No

supports wps : Yes

wi-fi transmission standard : WiFi 802.11 ax

wired transfer rate : 1000Mbps

2.4g wi-fi transmission rate : 300 Mbps

encryption type : WPA-PSK

products status : New

type : Wireless

application : MINI WIFI

function : Voip, FireWall, QoS, VPN, SDK available

lan ports : 3

brand name : /

place of origin : Shanghai, China

5g wi-fi transmission rate : 1000Mbps

Product name : Routers

Size : Customized Size

Color : Customizable

MOQ : 2 pieces

Price : CN¥144.51/pieces >=2 pieces

Contact Now

Product Description

Specification

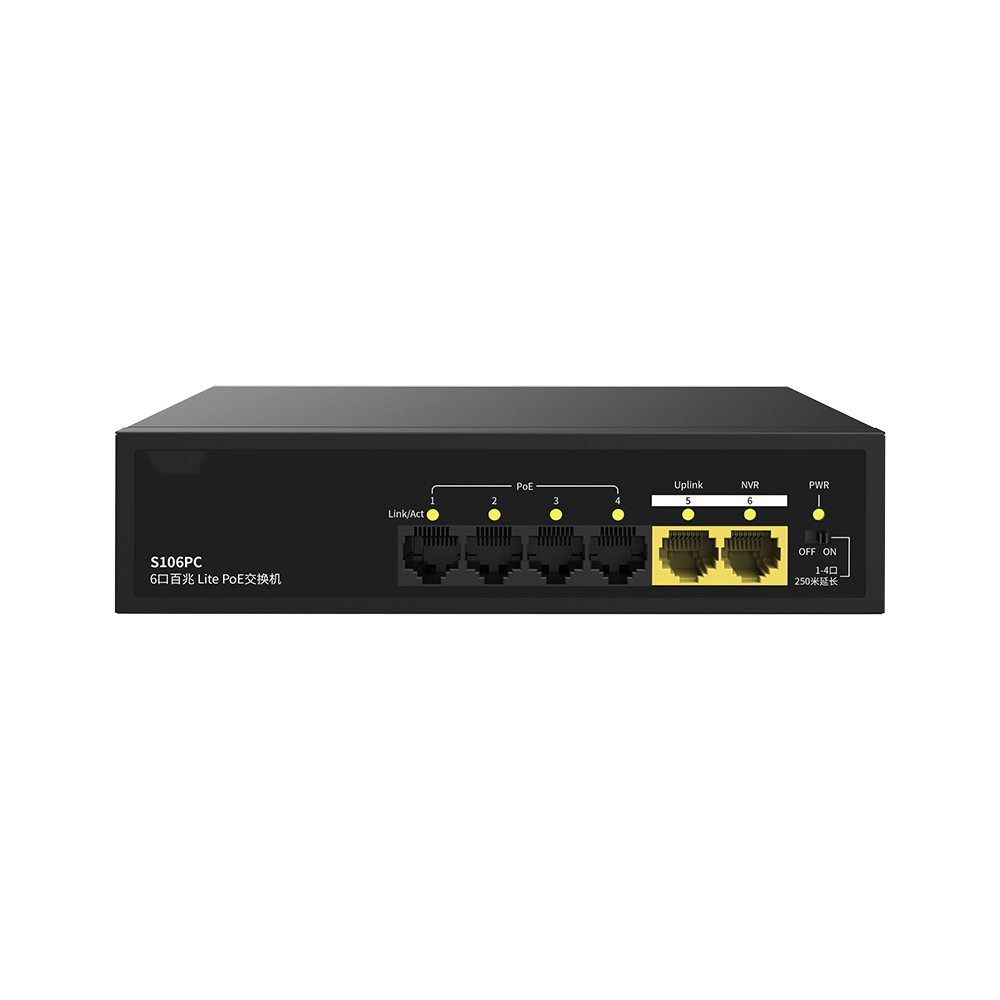

Product information	Product model	S106PC v2.0
Hardware parameter	Network standard	IEEE 802.3u, IEEE 802.3x
		Mean time to failure (MTBF)	≥ 100,000 hours
		Pilot lamp	Each 100 Mbit/s port has one Link/Ack indicator
		Pilot lamp		Each device has one Power indicator
		Fixed port	4 10/100 Base-TX Ethernet ports (Data/Power)
		Fixed port		2 10/100 Base-T Ethernet ports (Data)
		Port lightning protection	≥4KV
		Exchange capacity	1.2 Gbps
		Packet forwarding rate	0.89 Mpps
		PoE power supply	1-4 ports compatible with 802.3af PoE power supply
		PoE power supply		1, 2, 4, 5 plus, 3, 6, 7, 8 minus
		Input voltage	AC: 220V to 50Hz 0.7A
		Overall power consumption	Power consumption: < 55W
		Port characteristics	Two modes:
				OFF: indicates the common mode
				All ports can communicate with each other and can be used as a common non-NMS PoE switch.
				ON: Extended mode
				The maximum transmission distance of the switch is 250 meters, and the 1-4 ports are isolated from each other, and are interworking with 5 and 6.
		Forwarding mode	store-and-forward
		MAC address table	1K
Other parameters	Product size	17512743mm
		Use environment	Operating temperature: 0℃ ~ 40℃
				Storage temperature: -40℃ ~ 70℃
				Working humidity: 10% ~ 90% RH non-condensing
				Storage humidity: 5%-90%RH Non-condensing
